New LUKA Series: Evolution and precision in digital audio processors

New LUKA Series: Evolution and precision in digital audio processors

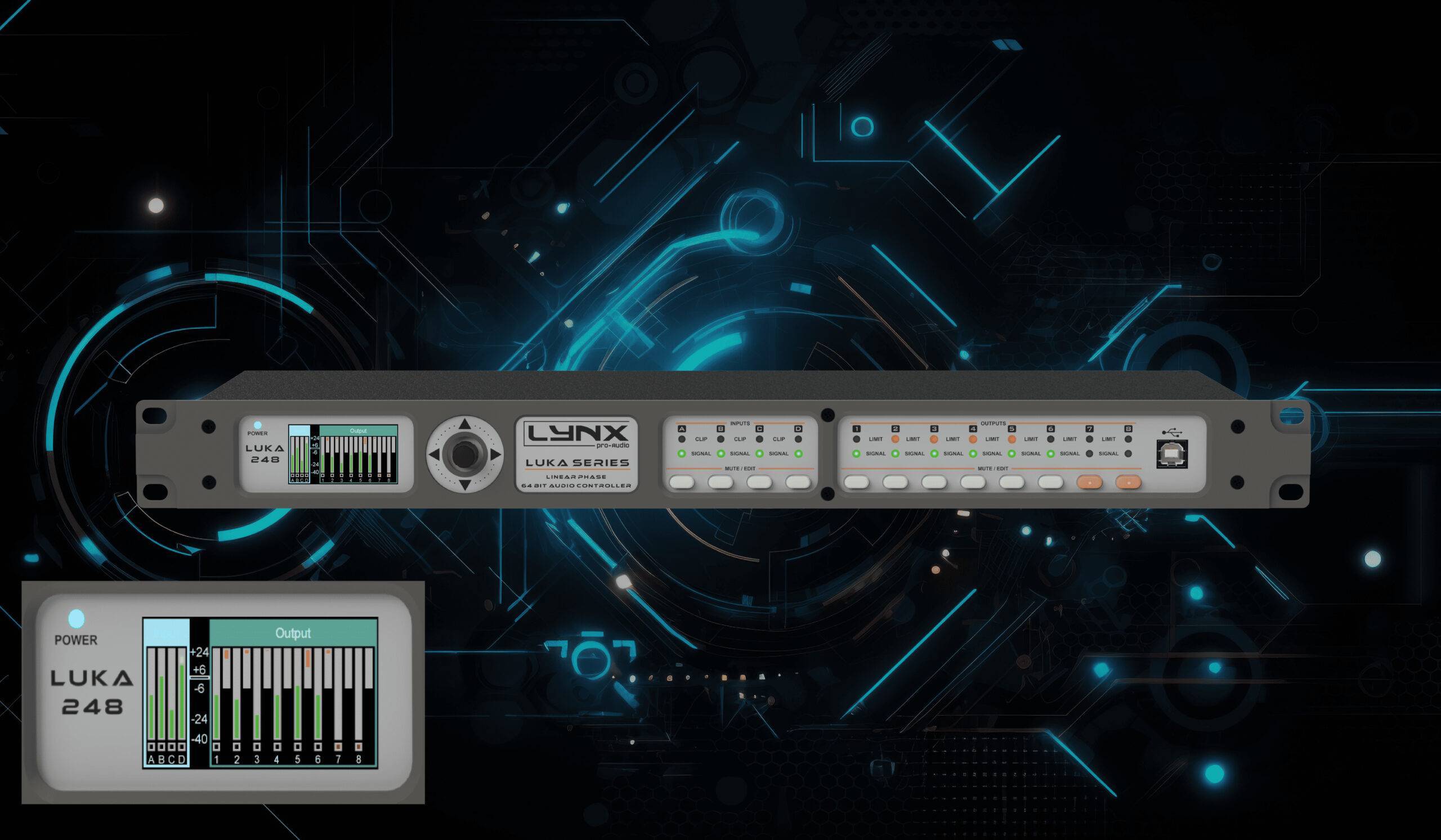

The new LUKA series is the new digital series of processors includes three different models, meticulously designed and manufactured by Lynx Pro Audio to offer exceptional sound quality and versatility for every installation. With AES3 input options and between 2 to 4 analogue inputs, along with up to 8 outputs, these professional audio processors stand out for their capability and flexibility.

The most notable feature of the LUKA Series is its audio signal routing and distribution matrix. This tool is essential for managing complex audio setups, facilitating the routing of signals to different speakers, monitors, or recording devices, thereby offering greater control and flexibility.

Audio signal routing and distribution matrix

Additionally, the series features a range of backup inputs, allowing multiple inputs to be available and prioritising one at any given time, thus ensuring the continuity of the event.

The LUKA Series offers Double Dynamics, with a compressor/limiter that adjusts the transducer’s sound level, maintaining the original dynamics and respecting the initial transition. This system minimises distortion levels and provides protection for all system components. On the other hand, the peak limiter controls the speaker’s maximum movement, protecting it from damage by reducing distortion caused by over-excursion. The 32-bit, 768 kHz AD and DA converters offer an exceptional dynamic range of 121 dB on the input and 120 dB on the output, with a sampling rate of up to 192 kHz for AES3.

LUKA digital processor back by Lynx Pro Audio

32-bit, 768 kHz AD and DA Converters offering exceptional dynamic range

The series operates with a wide voltage range of 85-240 V and a frequency of 40-400 Hz, featuring an IEC connector and an efficient power consumption of 30 W. Regarding audio processing, it covers frequencies from 10 Hz to 24 kHz, with an internal resolution of 64 bits at 48 kHz. The equalisation also includes customisable High-Pass, Parametric, and FIR filters.

The LUKA series not only provides superior sound quality but also offers the flexibility and control required to meet the most demanding needs of audio professionals.

For more information and detailed specifications, contact with our technical support team.

Expansion of the CPS series, the range of point source systems with coaxial driver

Expansion of the CPS series, the range of point source systems with coaxial driver

Lynx Pro Audio has announced the expansion of the CPS series, a range of high-power coaxial-powered point source systems designed especially for medium-sized events and fixed installations.

This year, in the latest edition of the ISE fair, we presented the expansion of the series with two new full-range point source enclosures, the CPS-210 and the CPS-14, all of them with active and passive versions. The series is completed with two ultra-compact passive enclosures.

We introduced the CPS-214 enclosure last year, which remains the most impressive system thanks to its powerful punch, along with the subwoofer of the series.

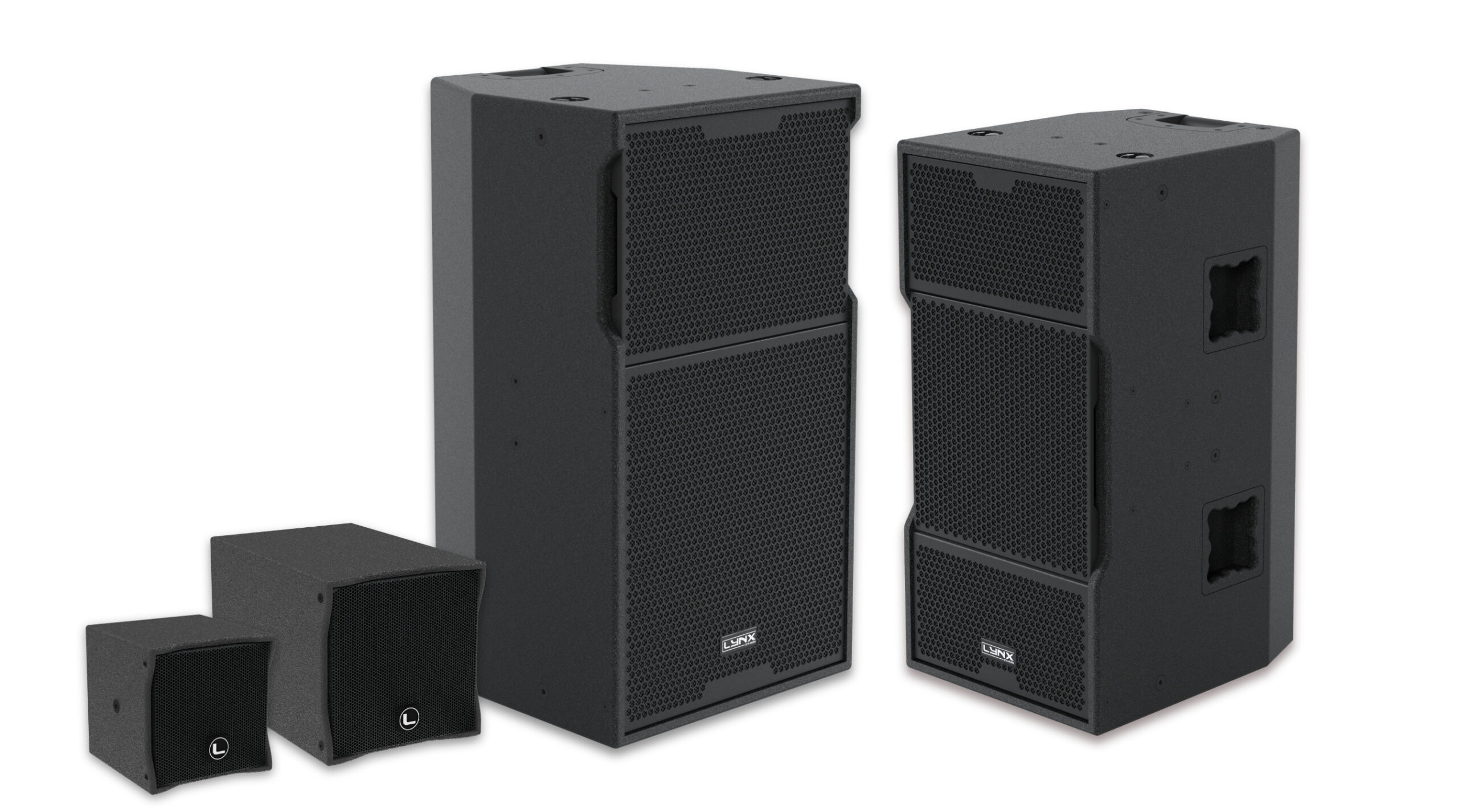

CPS series, a range of high-power coaxial-powered point source systems designed especially for medium-sized events and fixed installations.

Recently added to the catalogue, both the CPS-210 and the CPS-14 have the peculiarity that they allow you to choose between two coverages: 90º x 60º or 60º x 40º. Both are designed for medium-sized events and large fixed installations, feature integrated 64-bit/96 KHz DSP with FIR linear phase filtering.

CPS-210, a 3000W tri-amplified 3-way system with two different coverages. Active or passive available.

The CPS-210 enclosure is an extremely powerful and compact 3000W tri-amplified 3-way system. It features two 10″ neodymium speakers and an exclusive 1.4″ coaxial compression driver.

CPS-14, a 3000W tri-amplified 3-way system with two different coverages. Active or passive available.

The CPS-14 enclosure is also a 3000W tri-amplified 3-way system but features a single 14″ neodymium speaker and a unique 1.4″ dual-diaphragm coaxial driver.

The idea is that the CPS series becomes a large family of coaxial point source enclosures with different powers to cover a wide variety of setups and needs.

Jesús Fuentes, Product Manager at Lynx Pro Audio

The series is completed with two ultra-compact passive enclosures, the CPS-5 and CPS-4. These small enclosures are easy to set up and transport, designed to deliver clear, balanced sound in short throw applications and are suitable for indoor installations and as background sound reinforcement.

The CPS-5 has a 5″ coaxial speaker and a 70º conical dispersion, while the CPS-4 has a 4″ coaxial speaker and a 90º conical dispersion with no secondary lobes throughout the frequency range.



Latest generation DSP technology developed by Lynx Pro Audio

All CPS Series active enclosures use Lynx Pro Audio’s integrated DSP, a design by the company’s engineering team, offering the latest advances in digital processing, such as FIR filters, which offer superior frequency response and linear phase. The latest 32-bit/96KHZ AD/DA converters make the system one of the most advanced and innovative point sources on the market, resulting in sound quality completely unaltered from its original purity.

 To handle the basic adjustment options of the internal DSP, the cabinet has a rear panel with a 2.8″ IPS screen that serves as a user interface. It has a convenient joystick control that allows the user to control, select and adjust different parameters such as gain, delay, input EQ and cabinet presets.

The two enclosures have two Ethernet ports that allow them to be controlled through the OCS platform to facilitate monitoring and processing which, together with the Rainbow 3D electroacoustic prediction software, offers a complete design tool.

KR series, an ideal solution for conference, KTV rooms and clubs

KR series, an ideal solution for conference, KTV rooms and clubs

Lynx Pro Audio introduces the new KR series, a line of passive two-way loudspeakers specially designed for installations where high volume is required whilst delivering excellent vocal clarity with low distortion.

The two full-range models belonging to the KR series feature two-way passive 10″ and 12″ versions, with a 1″ driver mounter on a 90º x 60º rotatable horn.

KR cabinets are ideal for a wide range of fixed applications, such as KTV rooms, conference halls, houses of worship as well as discos and clubs.

The double port located at the rear of the enclosure creates increased bass frequency response. When installed close to a wall, it creates a reflection that extends the low frequency response of the system, creating extra bass boost.

Lynx Pro Audio KR-10 cabinet, front and rear view

KR-10

Lynx Pro Audio KR-12 cabinet, front and rear view

KR-12

The KR-10 cabinet consists of a 10” (2.5” voice coil) LF transducer with Double Asymmetric Rolls Technology (DAR) and waterproof cone. The 1” HF compression driver delivers excellent sonic quality. It has an exceptional dynamic range and produces even the most complex signals with depth and definition and is mounted on a 90º x 60º rotatable horn. With a 96 dB sensitivity and a max. SPL of 122 dB / 128 dB peak, rated power of 300W AES (600W program, 1200W peak). The fittings include 14 x M8, ergonomic handle on the back position, 4 x M6 U-bracket, 6 x M6 wall bracket and a 35 mm top hat.

The KR-12 consists of a 12” (3” voice coil) LF transducer with triple cloth surround and total waterproof cone treatment. The 1” HF compression driver delivers excellent sonic quality. It has an exceptional dynamic range and produces even the most complex signals with depth and definition and is mounted on a 90º x 60º rotatable horn. With a 97 dB sensitivity and a max. SPL of 124 dB / 130 dB peak, rated power of 500W AES (1000W program, 2000W peak). The fittings include 14 x M8, ergonomic handle on the back position, 4 x M6 U-bracket, 4 x M6 wall bracket and a 35 mm top hat.

Constructed from MDF and coated in high resistant polyurea paint, giving them greater durability. A wide range of dedicated accessories allows the installation of these loudspeakers in all types of set-ups: ceiling or wall mounted, on a speaker stand or as a satellite with a subwoofer.

Although the KR series can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance. These presets are available on the full range of ARK processors and on the brand’s amplifiers with built-in DSP.

Lynx Pro Audio introduced new products at ISE in Barcelona

Lynx Pro Audio introduced new products at ISE in Barcelona

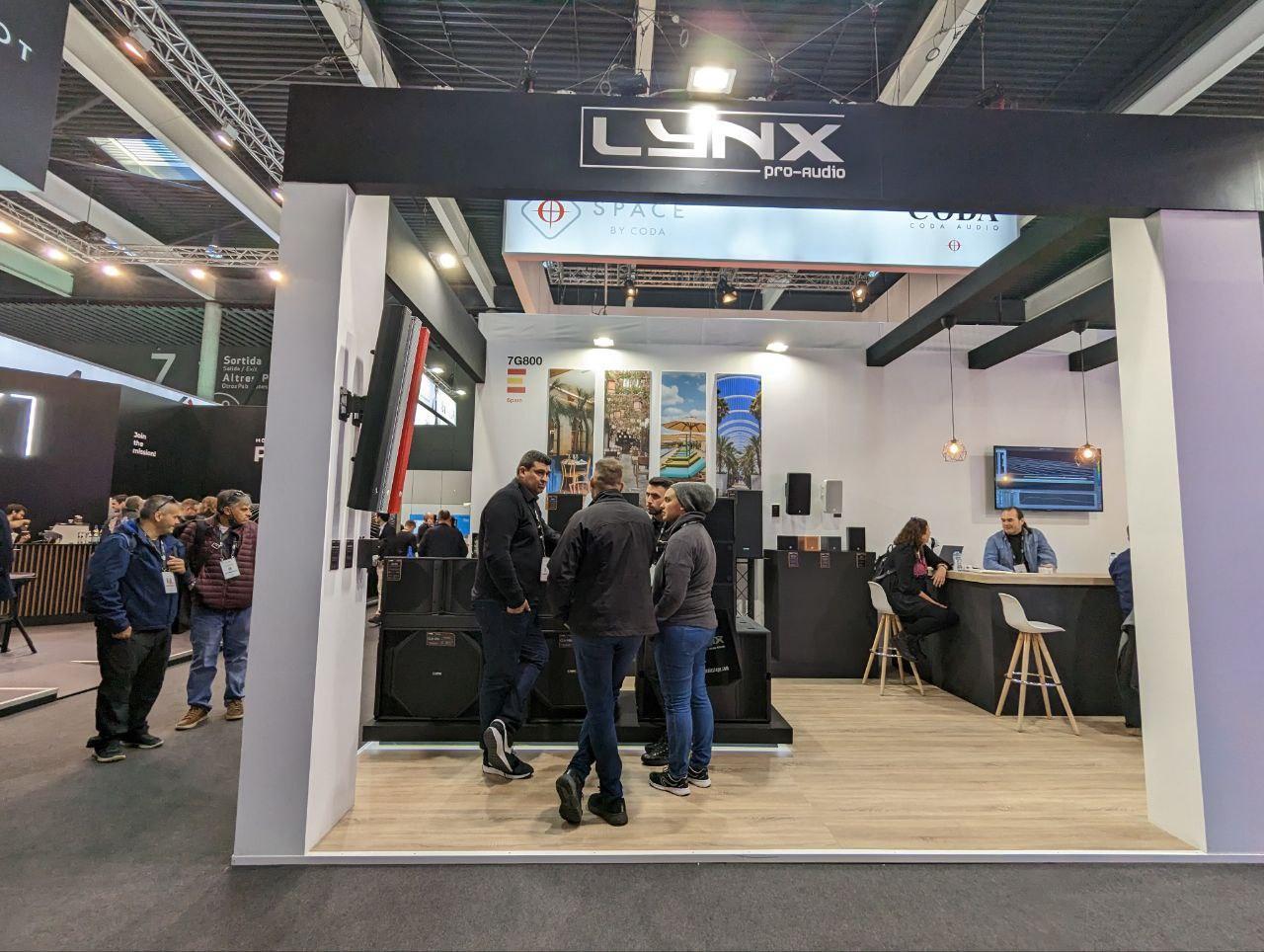

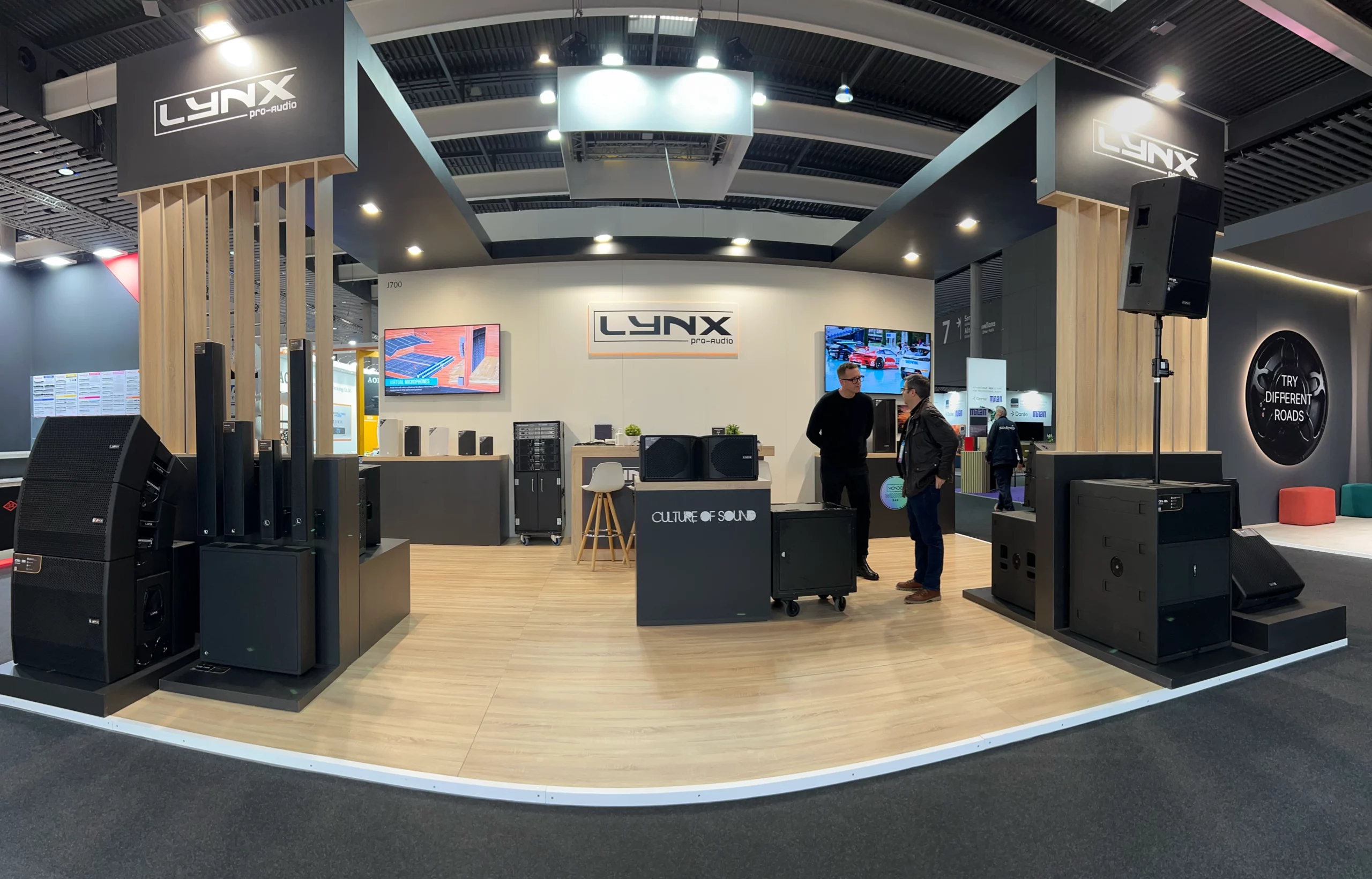

Lynx Pro Audio attended ISE 2022 between 10th – 13th May, the most important A&V trade fair in the world. Held in early February for the third time in Barcelona, this year’s ISE has established itself as the event we all hold in our memories: without restrictions, lively and with plenty of networking.

We are growing steadily, and once again we have had a slightly larger stand than the previous year. This edition we have introduced a whole range of products that will be available in the not too distant future, including new amplifiers, processors and enclosures.

ISE 2023 has been a perfect opportunity to reconnect with many of our customers. This time we had visitors from all over the world,  as a result of the opening of many countries and the end of restrictions. We noticed that the interest in Lynx Pro Audio keeps on growing. We have seen a lot of new faces at our stand and a lot of interest in our products.

At the same time, the new partnership agreement between Lynx Pro Audio and NEEC IBERIA started officially during the trade fair, boosting the distribution of Lynx Pro Audio products in Spain and Portugal.

What’s new

Lynx Pro Audio brings new developments in acoustics, electronics, signal processing, etc.

GTX amplifiers, ideal for touring

The new GTX amplifiers are 4-channel, extremely high power level amplifiers designed to withstand the rough requirements of the touring market. With outstanding, high efficiency, these amplifiers have been equipped with a quality FIR-DSP with high performance 96kHz DSP processing and a large IPS display with a touch panel user interface. 4 different models are available, from 5000 W up to 20000 W.

Advanced Audio Power Control Management has been implemented in the design of the GTX series. This enables the user to configure the division of power between the channels via the DSP enabling them to obtain maximum power through just one single channel if desired. Optional Networking (AES67) and AES3 Digital inputs are also available.

CPS, new coaxial point source system

In terms of acoustics, the new CPS point source system stands out. There is one full range cabinet available, CPS-214 together with one sub-bass unit, CPS-18S. The CPS (Coaxial Point Source) Series is our brand new high power, point source system, that will be available shortly.

Fot the top, we have the CPS-214 enclosure, an extremely compact & powerful 3-way, self-powered (6000 W Class-D with PFC), DSP integrated coaxial point source element. With dual high power 14″ neodymium transducers and a unique 2″ Exit throat (HF 1.75″ voice coil/ MF  3.5″ voice coil) coaxial neodymium compression driver. For the low frequencies, each CPS-18S is a sub-bass element designed to be used in unison with the coaxial CPS-214 point source module. This is a compact & extremely powerful, self-powered (3000 W Class-D with PFC), DSP integrated subwoofer unit in band pass configuration, with a 18″ (4″ voice coil) neodymium transducer.

Total system control is also achieved through our 3D prediction software (Rainbow 3D) working together with our remote system management platform (OCS). These cutting edge softwares together with the CPS technology provides the most optimum and precise listening experience to every ear in the audience.

Luka series: a new generation of processors

Lynx Pro Audio has unveiled its future LUKA series, a range of 3 models that represent Lynx Pro Audio’s technology and are the successor to the ARK processors. Luka will offer units with 2 AES3 inputs; 2 or 4 analogue inputs and up to 8 outputs. The new LUKA processors will be available after the summer.

Lynx Pro Audio’s new anechoic chamber

Lynx Pro Audio’s new anechoic chamber

An anechoic chamber is essential to obtain the most accurate acoustic information from a loudspeaker system. That is why at Lynx Pro Audio we have dedicated all the necessary resources to incorporate a new measurement space within our research and development department in Valencia, the headquarters of our company.

The new anechoic room has the latest technologies, being one of the most modern in Europe. The special design of the room offers our engineers an accurate measurement of the sound in a complete sphere (360 degrees), with an accuracy of one degree. As manufacturers and designers, we know how important it is to have a good anechoic chamber for measuring loudspeaker systems. We have a Four Audio robot to provide better sound measurement and we have a new space designed for accurate measurements in a free-field acoustic environment.

Having detailed information on the acoustic response of a box allows us to model each of our enclosures within the Rainbow 3D acoustic prediction software, offering a simulation that is as real as possible. In this way, we provide a powerful design tool with which our installers can carry out all kinds of sound reinforcement projects, from acoustic prediction for a basic venue to large installation projects both indoors and outdoors. The new Lynx Pro Audio anechoic room is a modern tool that all the brand’s customers will benefit from.
