Lynx Pro Audio introduces the new KR series, a line of passive two-way loudspeakers specially designed for installations where high volume is required whilst delivering excellent vocal clarity with low distortion.

The two full-range models belonging to the KR series feature two-way passive 10″ and 12″ versions, with a 1″ driver mounter on a 90º x 60º rotatable horn.

KR cabinets are ideal for a wide range of fixed applications, such as KTV rooms, conference halls, houses of worship as well as discos and clubs.

The double port located at the rear of the enclosure creates increased bass frequency response. When installed close to a wall, it creates a reflection that extends the low frequency response of the system, creating extra bass boost.

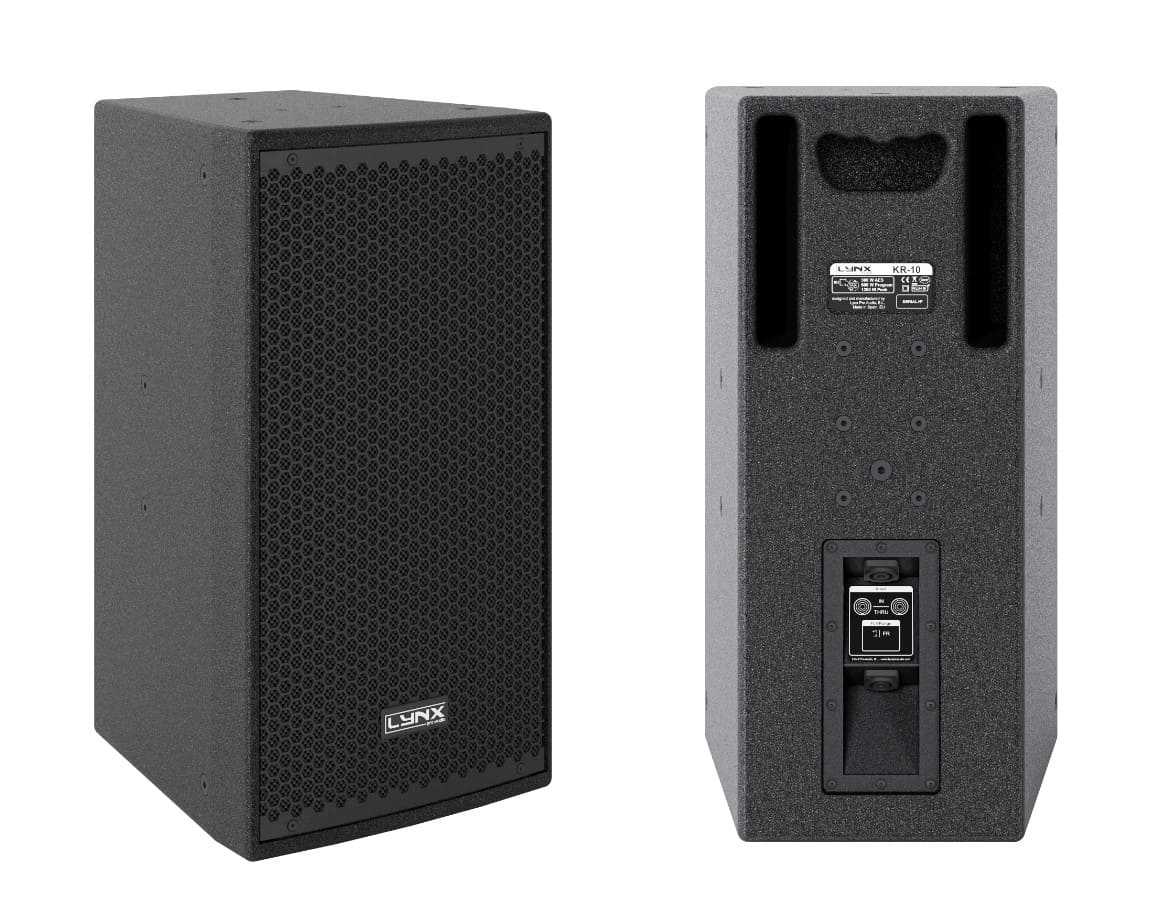

Lynx Pro Audio KR-10 cabinet, front and rear view

KR-10

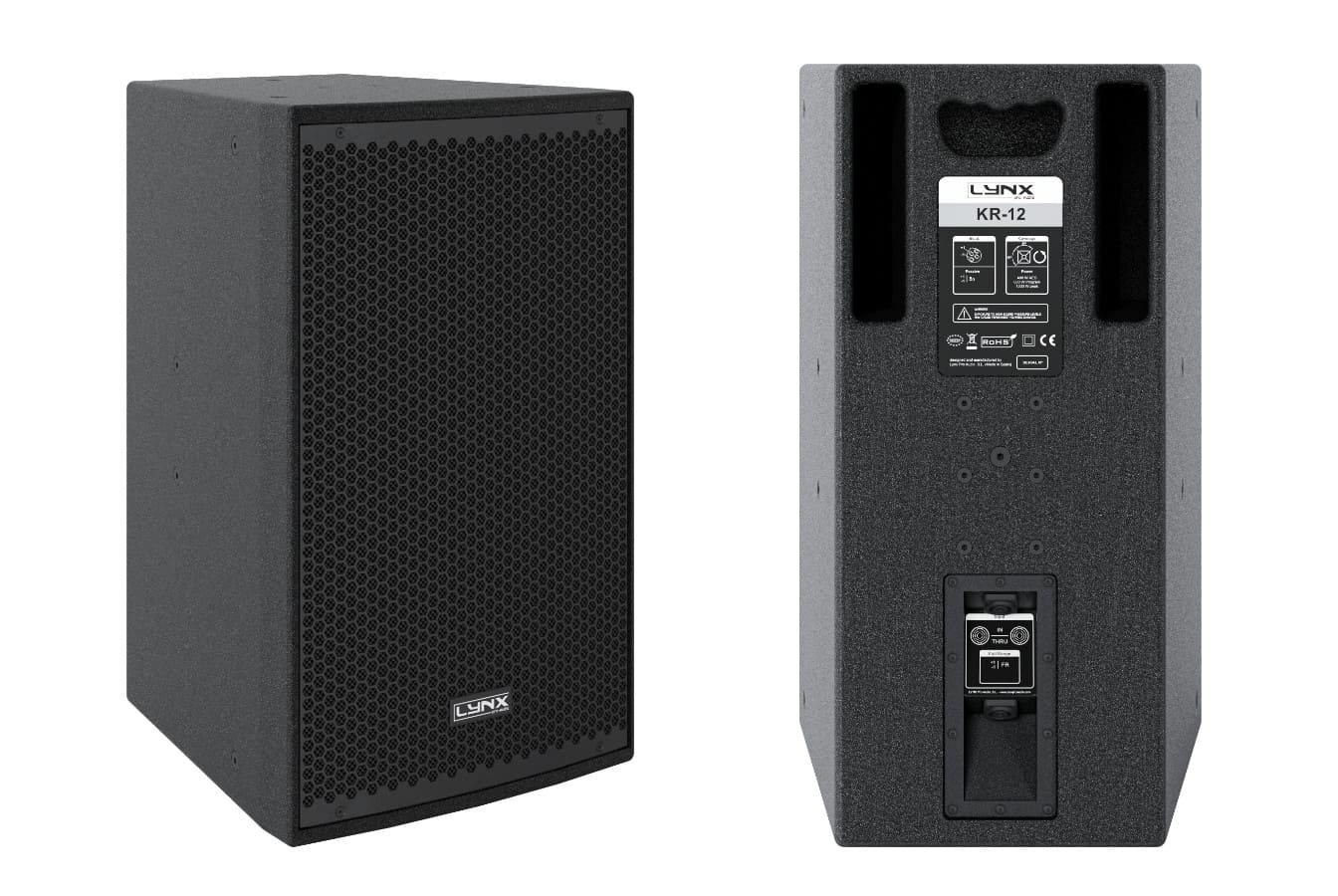

Lynx Pro Audio KR-12 cabinet, front and rear view

KR-12

The KR-10 cabinet consists of a 10” (2.5” voice coil) LF transducer with Double Asymmetric Rolls Technology (DAR) and waterproof cone. The 1” HF compression driver delivers excellent sonic quality. It has an exceptional dynamic range and produces even the most complex signals with depth and definition and is mounted on a 90º x 60º rotatable horn. With a 96 dB sensitivity and a max. SPL of 122 dB / 128 dB peak, rated power of 300W AES (600W program, 1200W peak). The fittings include 14 x M8, ergonomic handle on the back position, 4 x M6 U-bracket, 6 x M6 wall bracket and a 35 mm top hat.

The KR-12 consists of a 12” (3” voice coil) LF transducer with triple cloth surround and total waterproof cone treatment. The 1” HF compression driver delivers excellent sonic quality. It has an exceptional dynamic range and produces even the most complex signals with depth and definition and is mounted on a 90º x 60º rotatable horn. With a 97 dB sensitivity and a max. SPL of 124 dB / 130 dB peak, rated power of 500W AES (1000W program, 2000W peak). The fittings include 14 x M8, ergonomic handle on the back position, 4 x M6 U-bracket, 4 x M6 wall bracket and a 35 mm top hat.

Constructed from MDF and coated in high resistant polyurea paint, giving them greater durability. A wide range of dedicated accessories allows the installation of these loudspeakers in all types of set-ups: ceiling or wall mounted, on a speaker stand or as a satellite with a subwoofer.

Although the KR series can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance. These presets are available on the full range of ARK processors and on the brand’s amplifiers with built-in DSP.
