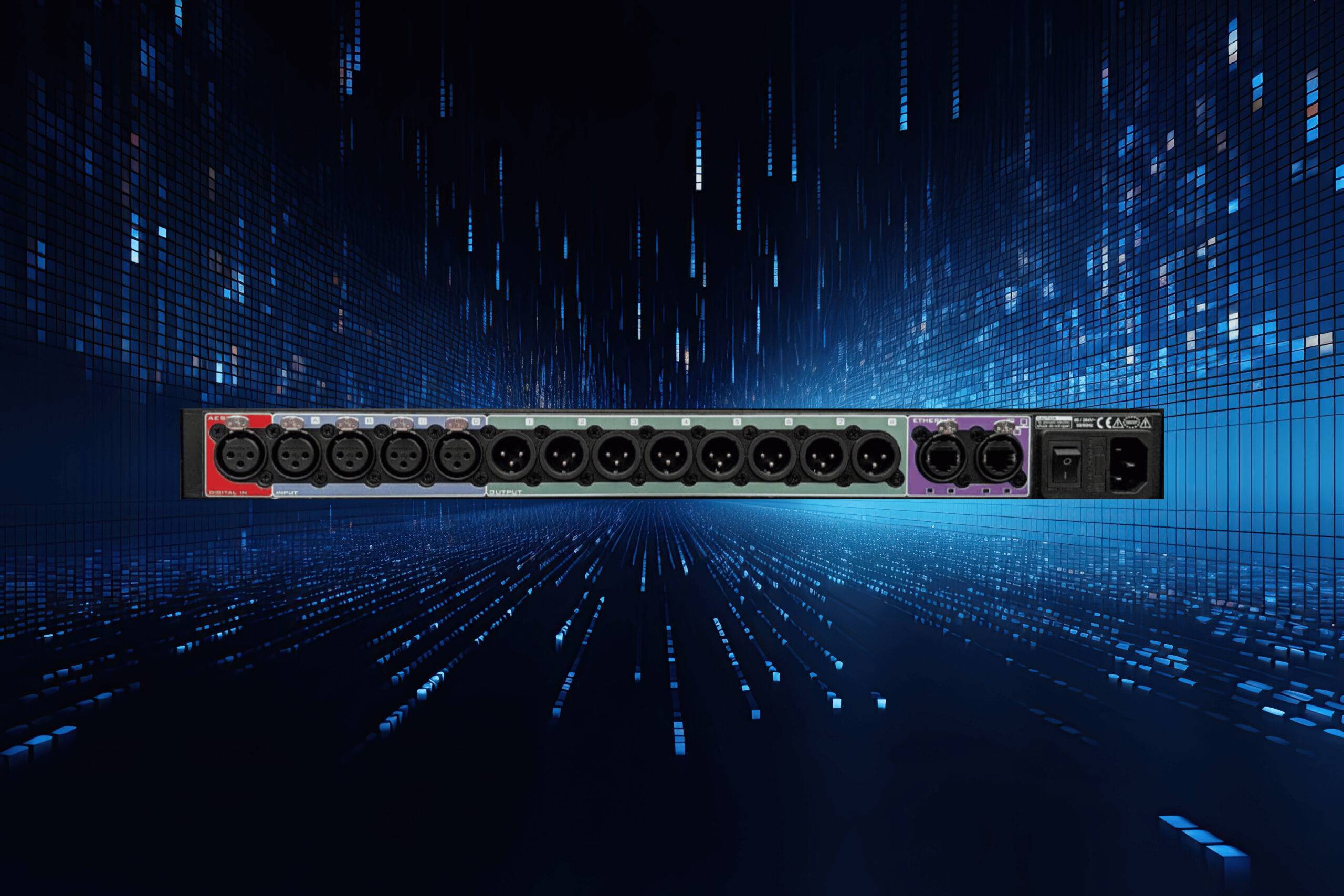

The new LUKA series is the new digital series of processors includes three different models, meticulously designed and manufactured by Lynx Pro Audio to offer exceptional sound quality and versatility for every installation. With AES3 input options and between 2 to 4 analogue inputs, along with up to 8 outputs, these professional audio processors stand out for their capability and flexibility.
The most notable feature of the LUKA Series is its audio signal routing and distribution matrix. This tool is essential for managing complex audio setups, facilitating the routing of signals to different speakers, monitors, or recording devices, thereby offering greater control and flexibility.
Audio signal routing and distribution matrix
Additionally, the series features a range of backup inputs, allowing multiple inputs to be available and prioritising one at any given time, thus ensuring the continuity of the event.
The LUKA Series offers Double Dynamics, with a compressor/limiter that adjusts the transducer’s sound level, maintaining the original dynamics and respecting the initial transition. This system minimises distortion levels and provides protection for all system components. On the other hand, the peak limiter controls the speaker’s maximum movement, protecting it from damage by reducing distortion caused by over-excursion. The 32-bit, 768 kHz AD and DA converters offer an exceptional dynamic range of 121 dB on the input and 120 dB on the output, with a sampling rate of up to 192 kHz for AES3.
32-bit, 768 kHz AD and DA Converters offering exceptional dynamic range
The series operates with a wide voltage range of 85-240 V and a frequency of 40-400 Hz, featuring an IEC connector and an efficient power consumption of 30 W. Regarding audio processing, it covers frequencies from 10 Hz to 24 kHz, with an internal resolution of 64 bits at 48 kHz. The equalisation also includes customisable High-Pass, Parametric, and FIR filters.
The LUKA series not only provides superior sound quality but also offers the flexibility and control required to meet the most demanding needs of audio professionals.
For more information and detailed specifications, contact with our technical support team.
