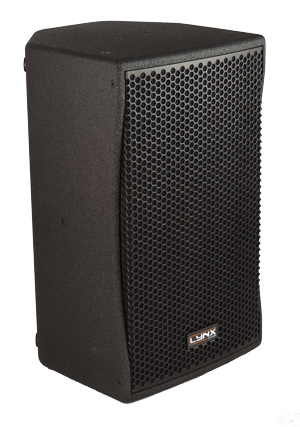

BS-10

Install essential

Compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn.

Where to buy

Description

The BS-10 is a compact, two-way passive cabinet. Consists of a 10” (2” voice coil) LF transducer and a 1” HF driver mounted on a 90º x 60º rotatable horn offering a wide range of applications from fixed installations, frontfill and as a stage monitor.

The 10” driver offers high power handling and high sensitivity with low harmonic distortion and linear response. The cone is waterproof and has been treated on both sides. The 1” HF driver delivers high sensitivity, with a PETP diaphragm.

The cabinet can be complemented by the BS-112 or BS-118 subwoofers and offers tremendous sound and clarity over short/mid distances. Constructed from premium birch plywood and coated in high resistant polyurea paint. The enclosure also offers a screw free grille together with a number of dedicated accessories. Although the BS-10 can be used without a processor we recommend that the cabinet presets are applied for maximum optimization and performance.

N

Perfectly suited for:

→  Club & bar installations
→  Sound reinforcement
→  Theatres
→  Houses of worship
→  Multi media spaces
→  Public address

Technical Data



Components
LF: 10” speaker, 2” ( 50 mm) copper wire voice coil, Waterproof cone with treatment on both sides
HF: 1” exit throat, (25 mm) voice coil, PETP dome compression driver
Frequency Range 65 Hz – 18 KHz (-10dB)
Sensitivity
94 dB
Max SPL/Peak* 119 dB / 125 dB
Rated Power
300W AES (600W program, 1200W peak)
Dispersion 90º x 60º rotatable
Nominal Impedance
8 Ω
Connectors 2 X NEUTRIK Speakon NL4
Finish
Polyurea coating
Material 15 mm premium birch plywood
Dimensions
500 x 300 x 301 mm (H x W x D)
Weight 14 Kg (30.8 lbs)
Fittings
5 x M8, single pole-mount, ergonomic handle on the back position
Accessories U bracket horizontal & vertical, M8 eyebolts, wall bracket
Enclosure type
Multi angle enclosure

* Calculated maximum SPL based on rated peak power and measured sensitivity

More features

Hardware for BS-10

Enclosure

 This cabinet is constructed from premium birch plywood (15mm thickness) and finished with polyurea coating.

Internal design

The internal structure of the cabinet is heavily braced for greater longevity and all parts are assembled on metal inserts with metric screws.

Rear panel

Discreet, integrated rear connection speakon panel.

Grill

The cabinet has a heavy duty, powder coated front grille with a special acoustic rear fabric to protect the transducers against dust and dirt.

Handles

An ergonomic handle is located on each side of the cabinet.

Single pole mount

M20 pole support for tripod or satellite setup with subwoofer.
Components





The BS-10 features one 10” low/mid transducer with FEA optimized ceramic magnetic circuit, low harmonic distortion and linear response, waterproof cone (treated on both sides) and a 1” high frequency driver with single piece PRTP diaphragm and surround mounted on a rotatable 90º x 60º horn enabling the cabinet to be used horizontally or vertically.

Accessories for BS-10
AGR-8
M8 Eyebolt
WB-20/2
Wall bracket for BS-10
UBR-BS10
U bracket for BS-10



Downloads

b

Datasheet

Catalogue

i

Manual

Image HD

l

Drawing 2D
